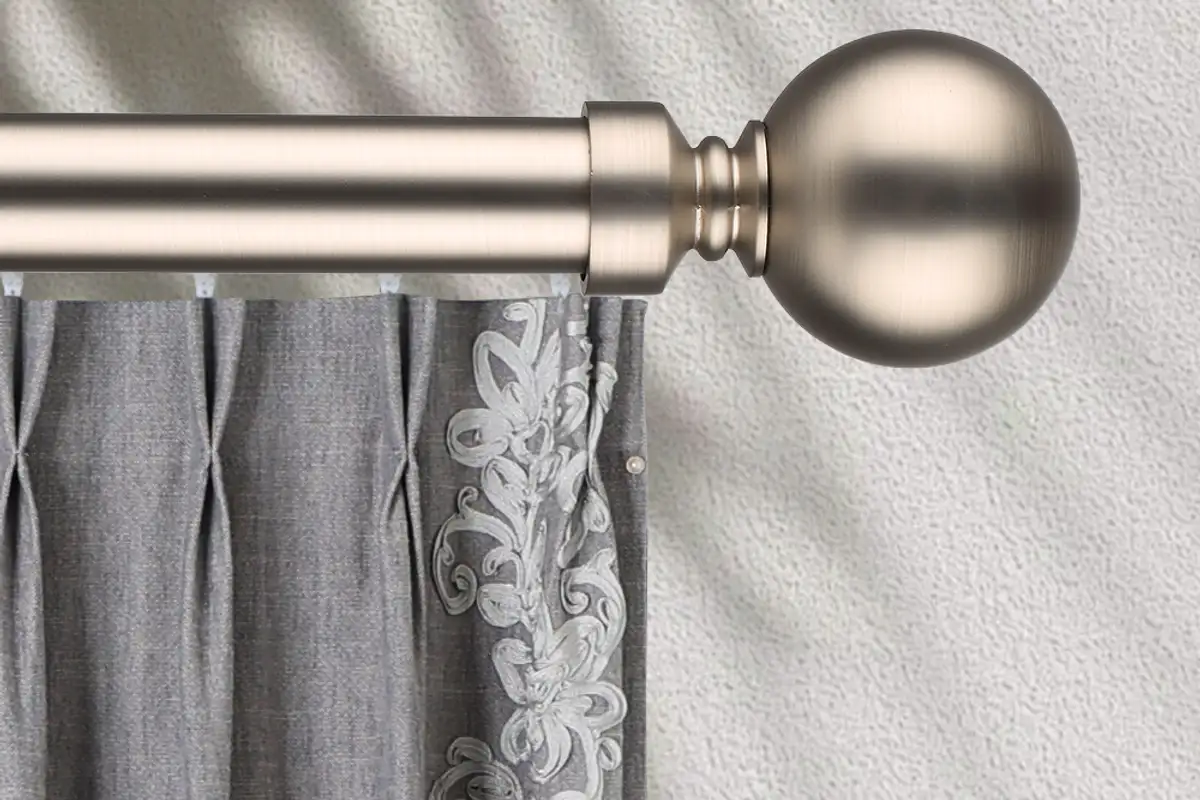

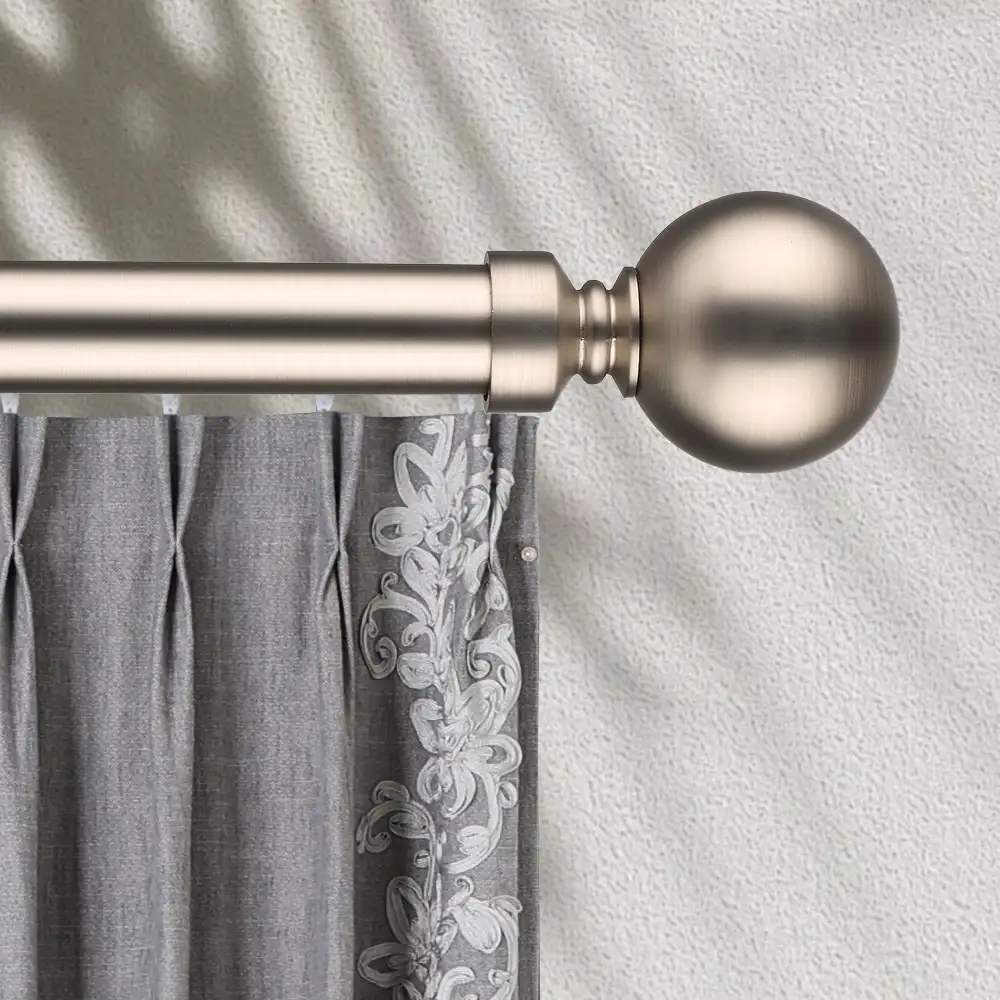

28mm Spherical Gliding Rod - 68022808-152 installed view

Hardware · Curtain Rods & Hardware#PJ000175

28mm Spherical Gliding Rod

Name: 28mm Spherical Gliding Rod
Availability: InStock

Updated: 2026-07-21

Overview

Add clean, understated structure to any window with this 28mm spherical gliding rod. The premium extruded aluminum alloy tube has a 1.2mm wall that resists rust and stays straight under load. Six electroplated matte finishes resist scratches and hold color for years, fitting modern, transitional, and minimalist interiors with equal ease.

Craftsmanship

Behind the Design

Extruded 6063 aluminum alloy curtain rod, Φ28mm × 1.2mm wall thickness. Spherical finial design. Multi-stage surface treatment: matte or electroplated finish followed by anti-oxidation coating. 1600mm standard blank — cut to specification on cold saw; ends deburred and chamfered. Precision-grooved inner rail with PA plastic gliders. 6 finishes: Matte Black, Matte White, Antique Bronze, Antique Brass, Satin Nickel, Antique Tin Matte. Modular bracket system supports single, double, ceiling-mount, and swivel connector configurations.

At a Glance

Specs & Features

Technical Specifications

SKUFinial: 68022809-401/152/202/212/365; Rod: 68003050-xxx; Brackets: 680028xx-xxx

CategoryΦ28mm Spherical Gliding Aluminum Alloy Curtain Rod & Hardware

MaterialExtruded 6063 aluminum alloy, Dia 28mm wall 1.2mm; glider uses high wear-resistant PA plastic

DimensionDia 28mm, wall 1.2mm, standard length 1600mm, customizable cutting

BracketsSingle short:90mm / Single long:150mm / Double:190mm / Ceiling mount

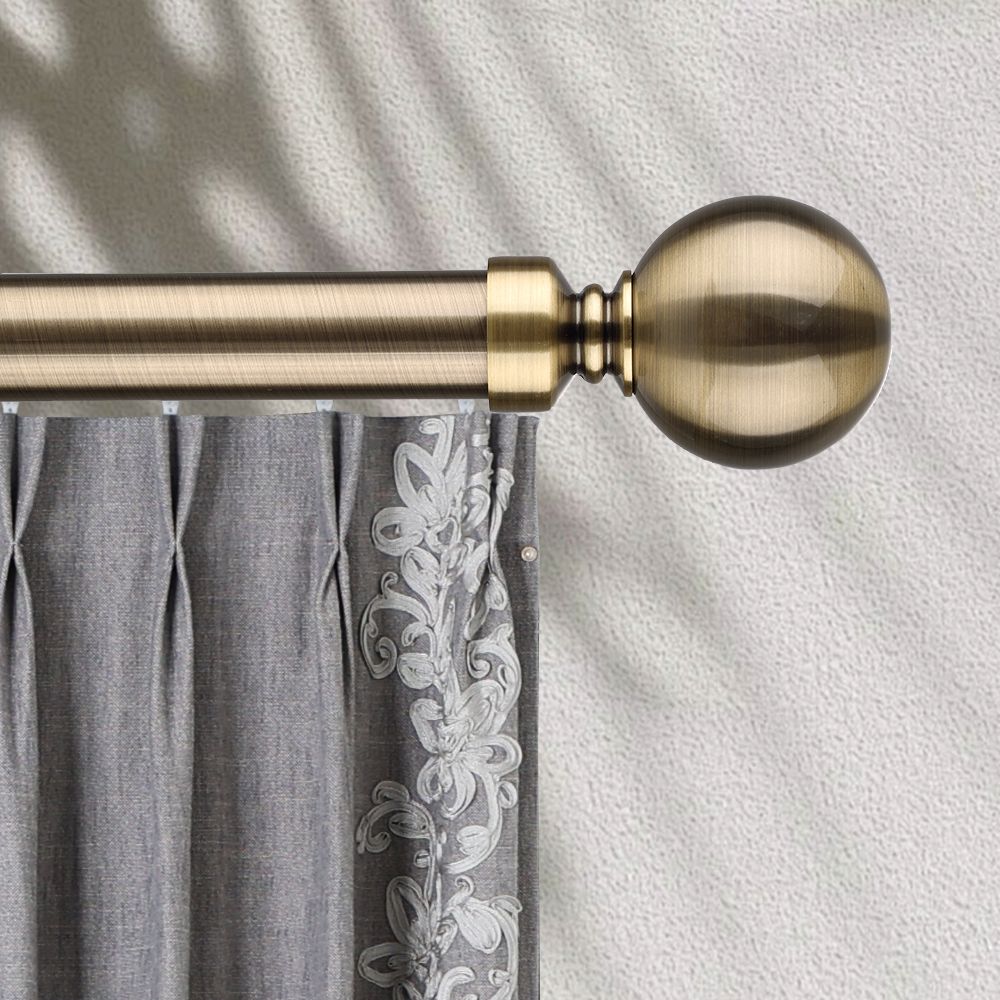

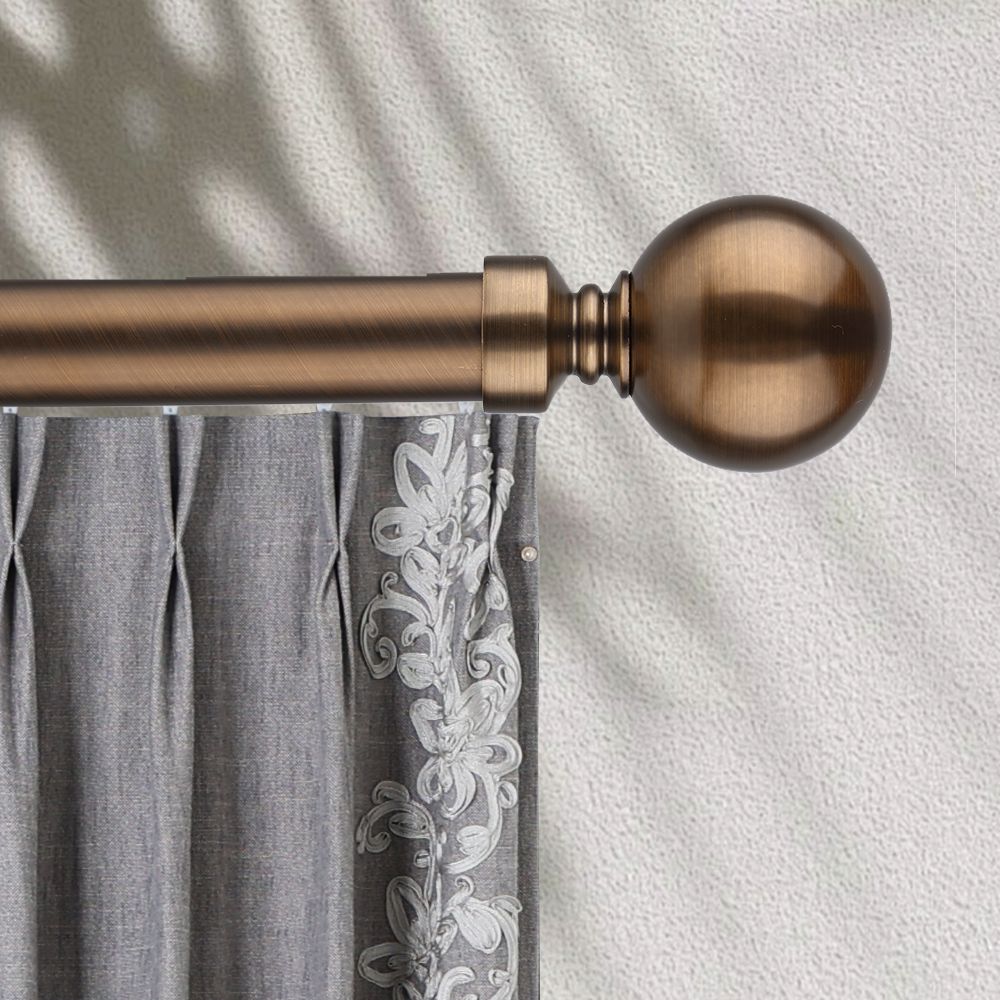

ColorsMatte Black, Matte White, Antique Bronze, Antique Brass, Satin Nickel, Antique Tin Matte

CraftExtrusion molding, matte/electroplated anti-oxidation, precision CNC hardware

InstallSide mount + ceiling mount; single/double layer; swivel connector for bay window

Key Features

Silent Smooth Glide FunctionSpherical rings glide along the rod without scraping. No painted surface wear over time.

Low MaintenanceAluminum does not rust. Wipe clean with a damp cloth — no polish, no lubricant required.

Aluminum extrusion, cut to lengthStandard 1600mm blank. We cut to exact mm on a cold saw. Ends are deburred and chamfered — no sharp edges during installation.

Finish is ED-coated, not paintedElectrophoretic coating covers inside and outside of the tube. No bare aluminum exposed after cutting because the coating was applied to the full length before cutting.

Brackets are universalSame bracket for single and double rod — the lower track clips onto the upper. Retrofit from single to double without drilling new holes.
