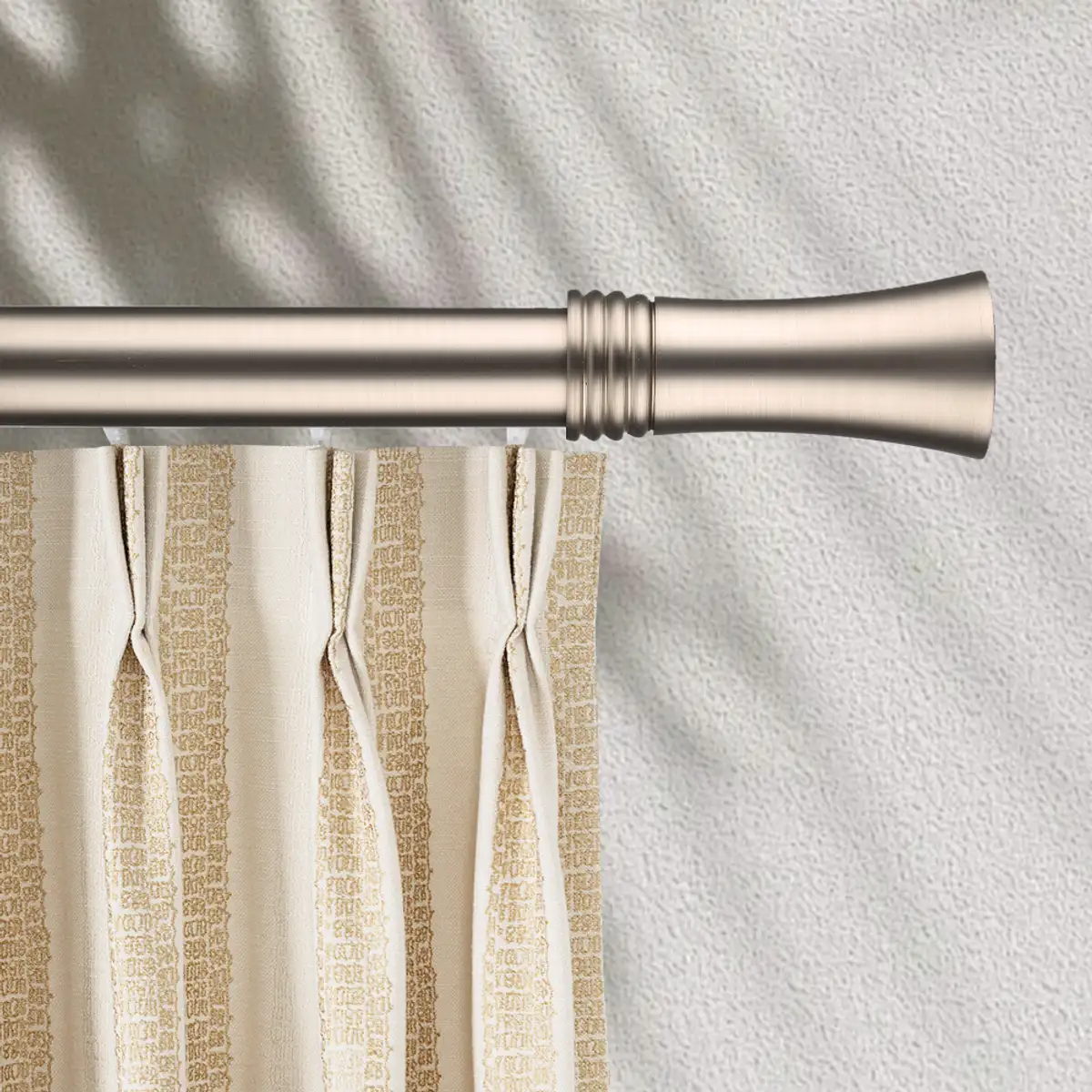

28mm Flared Spiral Glide Rod - 68022806-152 installed view

Hardware · Curtain Rods & Hardware#PJ000197

28mm Flared Spiral Glide Rod

Name: 28mm Flared Spiral Glide Rod
Availability: InStock

Updated: 2026-07-21

Overview

Built for clean, minimalist interiors, this 28mm flared spiral glide rod brings refined craftsmanship to any window. The premium extruded aluminum alloy tube has a 1.2mm wall that resists rust and deformation while staying lightweight. Six electroplated matte finishes resist scratches and hold their color for years, making it a reliable fit for both residential and commercial projects.

Craftsmanship

Behind the Design

Extruded 6063 aluminum alloy curtain rod, Φ28mm × 1.2mm wall thickness. Multi-stage surface treatment: matte or electroplated finish followed by anti-oxidation coating. 1600mm standard blank — cut to exact specification on cold saw; ends deburred and chamfered. Precision-grooved inner rail with PA plastic gliders for silent curtain movement. 6 finishes: Matte Black, Matte White, Antique Bronze, Antique Brass, Satin Nickel, Antique Tin Matte. Modular bracket system supports single, double, ceiling-mount, and swivel connector configurations.

At a Glance

Specs & Features

Technical Specifications

SKUFinial: 68022806-401/152/202/212/365; Rod: 68003050-xxx; Brackets: 680028xx-xxx

CategoryΦ28mm Flared Spiral Glide Aluminum Alloy Curtain Rod & Hardware

MaterialExtruded 6063 aluminum alloy, Dia 28mm wall 1.2mm; glider uses high wear-resistant PA plastic

DimensionDia 28mm, wall 1.2mm, standard length 1600mm, customizable cutting

BracketsSingle short:90mm / Single long:150mm / Double:190mm / Ceiling mount

ColorsMatte Black, Matte White, Antique Bronze, Antique Brass, Satin Nickel, Antique Tin Matte

CraftExtrusion molding, matte/electroplated anti-oxidation, precision CNC hardware fittings

InstallSide mount + ceiling mount; single/double layer; swivel connector for bay window

Key Features

Silent Smooth Glide FunctionSpiral gliding ring travels along the rod without scraping. No painted surface wear over time.

Low MaintenanceAluminum does not rust. Wipe clean with a damp cloth — no polish, no lubricant required.

Aluminum extrusion, cut to lengthStandard 1600mm blank. We cut to exact mm on a cold saw. Ends are deburred and chamfered — no sharp edges during installation.

Finish is ED-coated, not paintedElectrophoretic coating covers inside and outside of the tube. No bare aluminum exposed after cutting because the coating was applied to the full length before cutting.

Brackets are universalSame bracket for single and double rod — the lower track clips onto the upper. Retrofit from single to double without drilling new holes.
